Aluminium Flat Coping – Closed Stopend
£72.00 – £121.80
Description

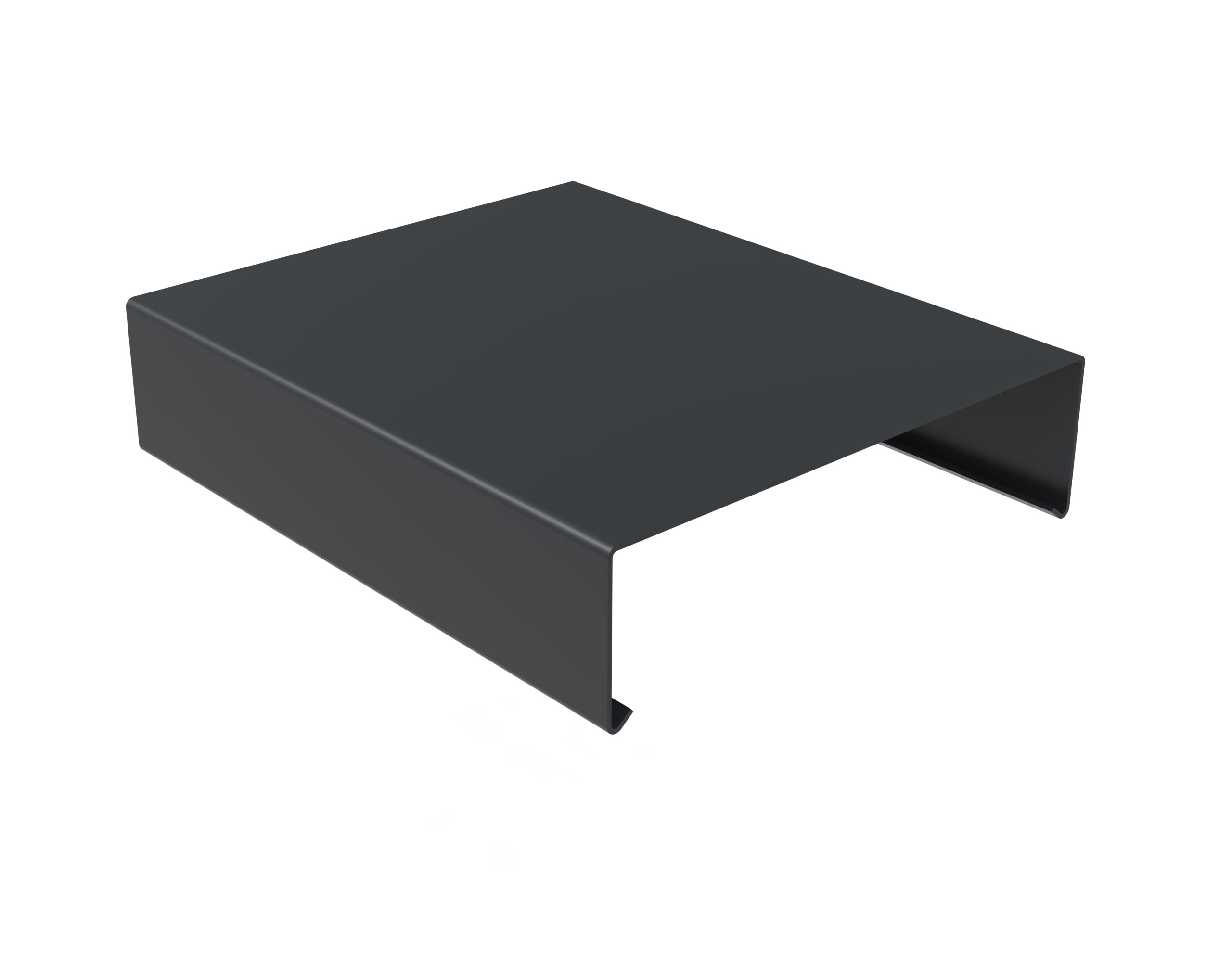

The Roof Coping Stopend – Aluminium is designed to securely finish the end of a coping run on flat roofs. This roof coping stopend provides excellent protection for roof edges, offering a durable and weather-resistant solution. Crafted from high-quality aluminium, it ensures a long-lasting, professional finish, perfect for maintaining the integrity of flat roof coping systems.
The Metal Profiles aluminium flat coping system provides a modern weathertight solution to parapet walls & terraces. The coping is coated with external grade polyester powder paint that provides long term durability and carries a fire class rating of A2-s1,d0.
Each stopend is supplied with between 1nr fixing bracket, which is used to secure to the top of the wall allowing the installation of the coping that is simply clicked in place.
All Metal Profiles aluminium products are polyester powder coated in a wide variety of RAL/BS colours to meet your project’s needs. Alongside the multiple standard coping sizes we provide, we also offer bespoke coping solutions for any obscure details that are required, if you require any bespoke solutions or require any other information, please get in contact for a 1-on-1 with our estimating team.
Benefits & Features
- Copings manufactured in 2/3mm aluminium with 4/5mm brackets.
- Polyester powder coated with external grade paint for long lasting durability.
- Wide variety of RAL/BS colours available.
- Fire class rating A2-s1,d0
- Cost efficient, easy to install system.
- Suitable for Industrial, Domestic & Commercial applications.
- Designed & Fabricated in the UK.
- Aluminium is 100% recyclable.
- Bespoke solutions available.
Installation Notes
- Typically fixed to 18mm external grade plywood,
- Brackets to have an EDPM Seal,
- A Push-Click fitting system with non-penetrating fixings,
- 3mm expansion gap at each joint.
- Suitable for new builds or existing properties.
| Thickness | Wall Width | Capping Width | Brackets Included | Weight “Kg” |
| 2mm | 100 – 125mm | 185mm | 1 | 1.16 |
| 2mm | 126 – 150mm | 210mm | 1 | 1.24 |
| 2mm | 151 – 175mm | 235mm | 1 | 1.32 |
| 2mm | 176 – 200mm | 260mm | 1 | 1.40 |
| 2mm | 201 – 225mm | 285mm | 1 | 1.48 |
| 2mm | 226 – 250mm | 310mm | 1 | 1.56 |
| 2mm | 251 – 275mm | 335mm | 1 | 1.64 |
| 2mm | 276 – 300mm | 360mm | 1 | 1.72 |
| 2mm | 301 – 325mm | 385mm | 1 | 1.80 |
| 2mm | 326 – 350mm | 410mm | 1 | 1.88 |
| 2mm | 351 – 375mm | 435mm | 1 | 1.96 |
| 2mm | 376 – 400mm | 460mm | 1 | 2.04 |
| 2mm | 401 – 425mm | 485mm | 1 | 2.12 |
| 2mm | 426 – 450mm | 510mm | 1 | 2.20 |
| 2mm | 451 – 475mm | 535mm | 1 | 2.28 |
| 2mm | 476 – 500mm | 560mm | 1 | 2.36 |
| 2mm | 501 – 525mm | 585mm | 1 | 2.44 |
| 2mm | 526 – 550mm | 610mm | 1 | 2.52 |
| 2mm | 551 – 575mm | 635mm | 1 | 2.60 |
| 2mm | 576 – 600mm | 660mm | 1 | 2.68 |
| 2mm | 601 – 625mm | 685mm | 1 | 2.76 |
| 2mm | 626 – 650mm | 710mm | 1 | 2.84 |
| 2mm | 651 – 675mm | 735mm | 1 | 2.92 |
| 2mm | 676 – 700mm | 760mm | 1 | 3.00 |
| 2mm | 701 – 725mm | 785mm | 1 | 3.08 |
| 2mm | 726 – 750mm | 810mm | 1 | 3.16 |
| 2mm | 751 – 775mm | 835mm | 1 | 3.24 |
| 2mm | 776 – 800mm | 860mm | 1 | 3.32 |
| 2mm | 801 – 825mm | 885mm | 1 | 3.40 |
| Thickness | Wall Width | Capping Width | Brackets Included | Weight “Kg” |
| 3mm | 426 – 450mm | 510mm | 1 | 3.15 |
| 3mm | 451 – 475mm | 535mm | 1 | 3.26 |
| 3mm | 476 – 500mm | 560mm | 1 | 3.37 |
| 3mm | 501 – 525mm | 585mm | 1 | 3.48 |
| 3mm | 526 – 550mm | 610mm | 1 | 3.59 |
| 3mm | 551 – 575mm | 635mm | 1 | 3.70 |
| 3mm | 576 – 600mm | 660mm | 1 | 3.81 |
| 3mm | 601 – 625mm | 685mm | 1 | 3.92 |
| 3mm | 626 – 650mm | 710mm | 1 | 4.03 |
| 3mm | 651 – 675mm | 735mm | 1 | 4.14 |
| 3mm | 676 – 700mm | 760mm | 1 | 4.25 |
| 3mm | 701 – 725mm | 785mm | 1 | 4.36 |
| 3mm | 726 – 750mm | 810mm | 1 | 4.47 |
| 3mm | 751 – 775mm | 835mm | 1 | 4.58 |
| 3mm | 776 – 800mm | 860mm | 1 | 4.69 |
| 3mm | 801 – 825mm | 885mm | 1 | 4.80 |
| 3mm | 826 – 850mm | 910mm | 1 | 4.91 |
| 3mm | 851 – 875mm | 935mm | 1 | 5.02 |
| 3mm | 876 – 900mm | 960mm | 1 | 5.13 |
| 3mm | 901 – 925mm | 985mm | 1 | 5.24 |
| 3mm | 926 – 950mm | 1010mm | 1 | 5.35 |
| 3mm | 951 – 975mm | 1035mm | 1 | 5.46 |
| 3mm | 976 – 1000mm | 1060mm | 1 | 5.57 |
The above table provides insight into the coping width recommend application conditions, if you are unsure on your required coping width, simply measure your wall and apply to the matching ranges. The table also provides some indication on the amount of included brackets required for each stopend and the other available options for different coping width/thickness.
The overall standard measurement of the coping will include an additional 75mm down-stand with 10mm return either side of the flat coping system, this will be added onto the required coping width to achieve your overall coping girth.
